Exhaust Hose Reel
>
Exhaust Extraction Spring Hose Reel Vehicle Workshops Spring Loaded Garden Hose Reel

Exhaust Extraction Spring Hose Reel Vehicle Workshops Spring Loaded Garden Hose Reel

Brand Name: FengShen
Model Number: FS-07S
MOQ: 1
Price: $453-498 / piece
Payment Terms: T/T
Supply Ability: 100 units per month,2000 units per year
Detail Information
Place of Origin:
Shanghai,China
Certification:
CE,ISO9001
Type:
Semi-Automatic
Warranty:
12 Months
Hose Material:
Rubber
Hose Diameter:
76 / 102 / 127 / 152 Mm
Hose Length:
8 / 10 Meters For Choice
Nozzle:
Suitable For All Kinds Of Vehicles
Voltage:
110V 220V 380V
Fan (Air Blower):
0.55 / 0.75 / 1.1 / 2.2/3 KW
Function:
Exhaust/Gas/Fume Extraction
Packaging Details:
Cardboard boxes, Wooden boxes
Supply Ability:
100 units per month,2000 units per year
Highlight:

workshops spring loaded garden hose reel

,

exhaust spring loaded hose reel

,

exhaust spring loaded garden hose reel

Product Description
Professional Spring Hose Reel System Vehicle Exhaust Extraction for Global Workshops
Product Overview

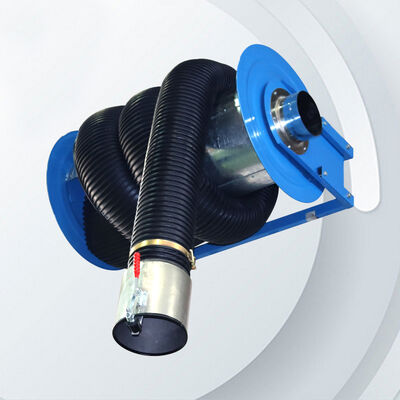

ES07 is manual spring unwind and return hose reel. Simply pull down the hose to the desired length and attach the exhaust nozzle to the vehicle tailpipe. After successfully removing car exhaust gas (fume) from your space, the hose easily retracts back into the reel.

  1. A drum ( The drum housing and ratchet gyrator are integrated die-casting plastic) stores the hose securely in place overhead
  2. The hose reel is mounted to a steel bracket.
  3. Manual operation with multi-position lock ratchet and stopper collar
  4. Heat & crush resistant exhaust hose
  5. A direct mount fan/blower is equipped at the hose reel exhaust port to make it work as an independent station.

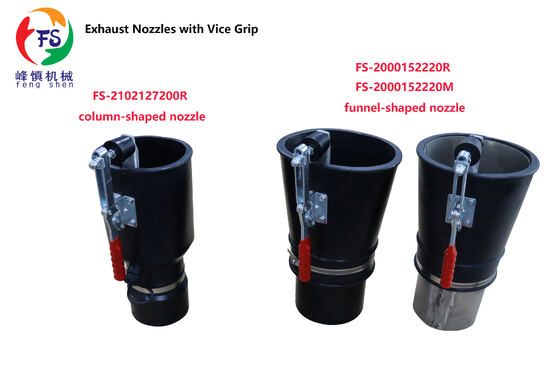

  6. Easy-quick nozzle (with probe intake for CO test) can attached to the exhaust source
Product Features
  • Manual Operation System: This Spring Hose Reel provides user-friendly manual control with consistent spring-powered retraction functionality
  • Zero-Maintenance Mechanism: Factory-sealed spring design eliminates the need for lubrication and routine maintenance
  • Comprehensive Vehicle Adaptability: Engineered for compatibility with all automotive categories including passenger vehicles, commercial trucks, and motorcycles
  • Streamlined Installation Process: Pre-configured assembly components significantly decrease installation duration and associated expenses
  • Optimized Extraction Efficiency: Ensures maximum exhaust removal capability for maintaining superior workshop air quality standards
Technical Specifications (Parameters Table)
Parameter Details
Applicable Scenes Auto repair workshops, 4S stores, truck service centers, fire rescue units
Airflow 800–2000 m³/h (adjustable)
Power Options 0.55KW, 0.75KW, 1.1KW, 2KW (blower optional)
Hose Material Heat- and crush-resistant rubber
Certifications CE, ISO9001
Mounting Height Up to 6 meters
Exhaust Extraction Spring Hose Reel Vehicle Workshops Spring Loaded Garden Hose Reel 0

FAQ

Q: Are you a trader or a factory?

A: We are a factory with over 20 years of experience in the industry.

Q: How does this Spring Hose Reel accommodate marine service requirements?

A: The corrosion-resistant engineering and manual operational reliability make this Spring Hose Reel exceptionally suitable for shipyard and maritime maintenance applications.

Q: What maintenance schedule is recommended?

A: No routine maintenance is necessary - the spring mechanism is factory-sealed for permanent operation.

Q: What is the typical installation timeframe?

A: Standard installations typically complete within 45-65 minutes using conventional workshop tools.

Q: Is this Spring Hose Reel compatible with residential workshop setups?

A: Absolutely, the manual operation design makes it perfectly suitable for both professional facilities and private workshop installations.

Q: What manufacturing standards apply to this product?

A: Produced according to international industrial specifications with full CE compliance for European market distribution.
