Exhaust Hose Reel
>
Emission Treatment Spring Driven Reels.75KW 1.1KW Vehicle Workshop Equipment

Emission Treatment Spring Driven Reels.75KW 1.1KW Vehicle Workshop Equipment

Brand Name: FengShen
Model Number: FS-07S
MOQ: 1
Price: $267-576 / piece
Payment Terms: T/T
Supply Ability: 100 units per month,2000 units per year
Detail Information
Place of Origin:
Shanghai,China
Certification:
CE,ISO9001
Type:
Semi-Automatic
Warranty:
12 Months
Hose Material:
Rubber
Hose Diameter:
76 / 102 / 127 / 152 Mm
Hose Length:
8 / 10 Meters For Choice
Nozzle:
Suitable For All Kinds Of Vehicles
Voltage:
110V 220V 380V
Fan (Air Blower):
0.55 / 0.75 / 1.1 / 2.2/3 KW
Function:
Exhaust/Gas/Fume Extraction
Packaging Details:
Cardboard boxes, Wooden boxes
Supply Ability:
100 units per month,2000 units per year
Highlight:

1.1kw spring driven reels

,

1.1kw spring rewind reels

,

vehicle spring driven reels

Product Description
Spring Hose Reel Vehicle Emission Treatment Workshop Use Workshop Equipment
Product Overview

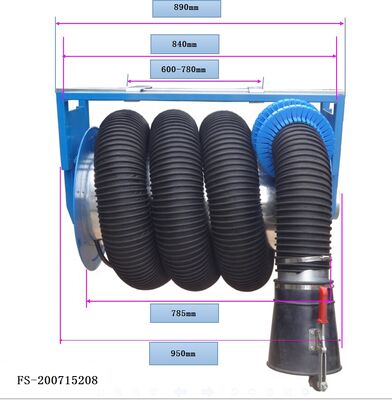

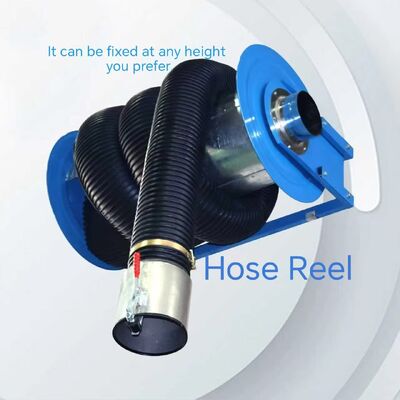

The ES07 Manual Spring Exhaust Hose Reel is a cost-effective and user-friendly solution designed to eliminate hazardous vehicle exhaust fumes from automotive workshops, repair centers, and maintenance facilities. This robust system features a spring-operated retraction mechanism that allows technicians to effortlessly pull the hose to the required length, attach the nozzle to the vehicle's tailpipe, and automatically retract the hose after use. Ideal for automotive repair shops, 4S stores, truck service centers, and fire stations, this Exhaust Hose Reel ensures a safer and cleaner working environment by effectively capturing and removing toxic emissions at the source

Emission Treatment  Spring Driven Reels.75KW 1.1KW Vehicle Workshop Equipment 0
Features

ES07 is manual spring unwind and return hose reel. Simply pull down the hose to the desired length and attach the exhaust nozzle to the vehicle tailpipe. After successfully removing car exhaust gas (fume) from your space, the hose easily retracts back into the reel.

  1. A drum ( The drum housing and ratchet gyrator are integrated die-casting plastic) stores the hose securely in place overhead
  2. The hose reel is mounted to a steel bracket.
  3. Manual operation with multi-position lock ratchet and stopper collar
  4. Heat & crush resistant exhaust hose
  5. A direct mount fan/blower is equipped at the hose reel exhaust port to make it work as an independent station.
  6. Easy-quick nozzle (with probe intake for CO test) can attached to the exhaust source
Technical Parameters
parameter specification
applicable scene Automobile repair workshops, 4S stores, truck service centers
Airflow 800-2000 m³/h (adjustable)
Power 0.55KW,0.75KW,1.1KW,2KW
Certifications CE, ISO9001
