Auto Emission Vehicle Exhaust Extraction Equipment Vehicle Hose Reel Extraction System

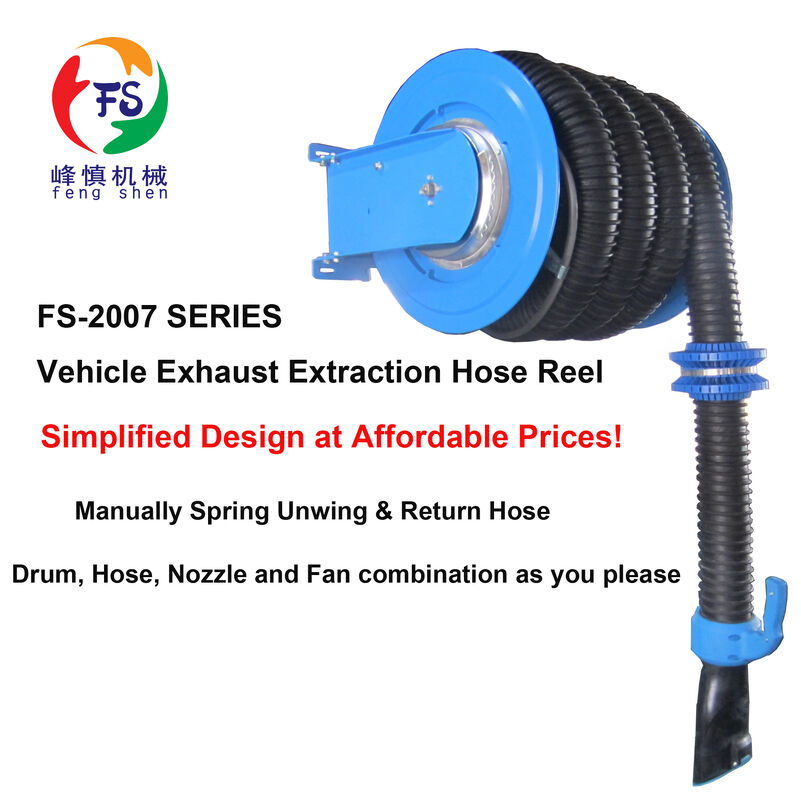

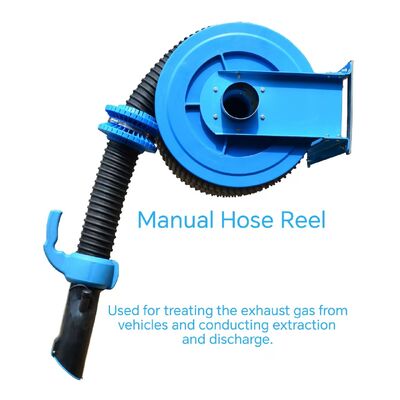

ES07 is manual spring unwind and return hose reel. Simply pull down the hose to the desired length and attach the exhaust nozzle to the vehicle tailpipe. After successfully removing car exhaust gas (fume) from your space, the hose easily retracts back into the reel.

1. A drum ( The drum housing and ratchet gyrator are integrated die-casting plastic) stores the hose securely in place overhead
2. The hose reel is mounted to a steel bracket.
3. Manual operation with multi-position lock ratchet and stopper collar
4. Heat & crush resistant exhaust hose
5. A direct mount fan/blower is equipped at the hose reel exhaust port to make it work as an independent station.
6. Easy-quick nozzle (with probe intake for CO test) can attached to the exhaust source

• Effortless Manual Operation: The spring-driven retraction system includes a multi-position lock ratchet and stopper collar. Technicians simply pull the hose to the desired length, and it locks securely in place. A slight tug after use releases the mechanism, allowing the hose to retract smoothly onto the drum.

• Durable Construction: Built with a high-strength steel bracket and a drum housing made of integrated die-casting plastic, this Exhaust Hose Reel is designed for long-lasting performance. The heat- and crush-resistant rubber hose can withstand high temperatures, ensuring durability in demanding workshop conditions.

• Direct-Mount Fan/Blower Compatibility: The reel can be equipped with an optional direct-mount fan or blower (0.55KW–2KW), enabling it to function as an independent extraction station without external ducting. This flexibility makes it suitable for both permanent and temporary setups.

• Safety-Focused Accessories: Includes an easy-attach nozzle with a probe intake for CO testing, ensuring compliance with air quality standards. The overhead storage design keeps hoses away from floor hazards, reducing tripping risks and improving workshop safety.

• Easy Installation and Space Optimization: Mounts on walls or ceilings using galvanized steel brackets, making it ideal for shops with limited space. The compact design keeps hoses neatly stored overhead, freeing up valuable floor area
