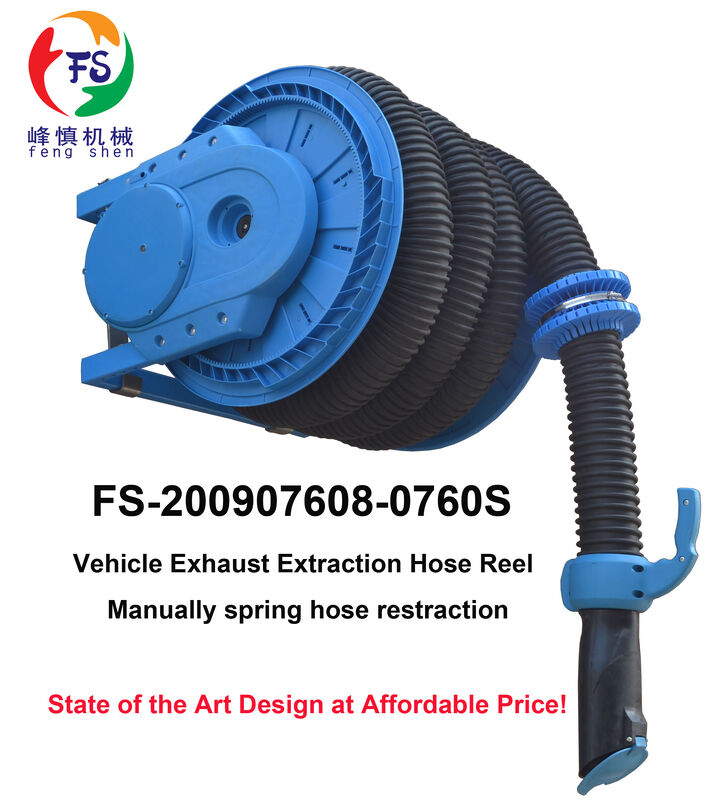

Professional Spring Hose Reel for Universal Vehicle Exhaust Extraction

The Series ES09 Vacuum hose reel facilitates the handling of long and heavy vacuum hoses. and provides tidy and safe storage when they are not in use. Reel fitted with automatic damper that opens and closes as the hose is operate din/out. The reel is also fitted with a remote switch that signals to the dust extraction unit to start/stop when the hose is operated in/out. Supplied with separate wall bracket for ease of installation.

Installation pack The package includes all necessary installation material for pipe connections 63 mm or 100 mm (branch coupler, joint sleeves, connecting hose brackets 300 mm, pilot cable, connection box, straps, hose clips)

1. A drum (The drum housing and ratchet gyrator are integrated die-casting plastic) stores the hose securely in place overhead
2. The hose reel is mounted to a steel bracket.
3. Manual operation with multi-position lock ratchet and stopper collar
4. Heat & crush resistant exhaust hose
5. A direct mount fan/blower(optional) is equipped at the hose reel exhaust port to make it work as an independent station.
6. With built-in damper and remote switch.

• Maintenance-Free Spring Mechanism: This Spring Hose Reel incorporates a high-tension spring system that requires no lubrication, adjustment, or electrical power, ensuring years of reliable operation with minimal intervention.

• Universal Vehicle Compatibility: Designed to work seamlessly with all vehicle exhaust systems, the reel accommodates various hose diameters and connection types without requiring adapters or modifications.

• Durable Industrial Construction: Built with reinforced steel components and corrosion-resistant finishes, this Spring Hose Reel withstands harsh workshop conditions, chemical exposure, and continuous daily use.

• Efficient Exhaust Extraction: Optimized for maximum airflow efficiency, the system provides effective fume removal while minimizing resistance and maintaining consistent extraction performance.

• Simple & Intuitive Operation: The user-friendly design allows for easy hose extension and smooth automatic retraction, reducing setup time and operator effort during exhaust extraction tasks.

Q: What maintenance is required for this Spring Hose Reel?
A: Essentially none. The spring mechanism is permanently lubricated and sealed at the factory, requiring no ongoing maintenance. The durable construction materials resist corrosion and wear, making this Spring Hose Reel truly maintenance-free for its entire service life.

Q: Can this Spring Hose Reel handle the weight of long exhaust hoses?
A: Yes, the high-tension spring system is specifically engineered to handle extended hose lengths up to 12 meters while maintaining smooth, controlled retraction. The mechanism provides consistent tension throughout the entire extension range, ensuring reliable performance with various hose weights and lengths.

Q: Is professional installation required for this Spring Hose Reel?
A: While professional installation is recommended for optimal performance, the Spring Hose Reel comes with comprehensive mounting hardware and clear instructions for straightforward installation in most workshop settings. The simple mechanical design makes it easier to install than electrically powered alternatives.
