Auto Workshops Gasoline Vehicle Exhaust Extraction 10m Fume Removal System

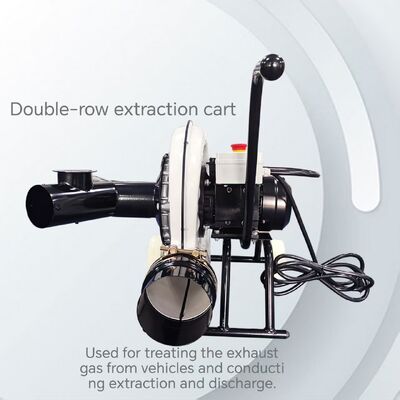

The Fengshen Portable Exhaust Extractor is a dedicated, high-efficiency mobile system engineered for one primary purpose: to safely remove harmful vehicle exhaust fumes from automotive workshops and garages. Designed as a critical tool for facilities where fixed extraction systems are not installed, this unit provides an affordable and practical solution for capturing toxic emissions directly at the tailpipe. This Portable Exhaust Extractor is mounted on castors for full workshop mobility, allowing it to be positioned behind any car, truck, or motorcycle, and efficiently discharges captured fumes up to 10 meters away, ensuring a safer and healthier environment for technicians in repair shops, fire stations, and personal garages.

• Pure & Powerful Fume Extraction: This unit is purpose-built as a Portable Exhaust Extractor, specializing in the high-volume capture and removal of vehicle exhaust gases. Its powerful fan creates strong suction to instantly pull fumes from the source, preventing them from contaminating the workshop air.

• Complete Workshop Mobility: Mounted on sturdy, swivel castors, this Portable Exhaust Extractor can be freely and effortlessly moved around a workshop with multiple bays. It delivers on-demand fume extraction exactly where it's needed, offering flexibility that fixed systems cannot match.

• Safe and Effective Discharge: The system is designed to capture fumes and safely channel them away from the work area, with the capability to discharge harmful contaminants up to 10 meters distant, effectively protecting the immediate breathing zone of personnel.

• Simple, Robust Design: Focused on reliability and ease of use, this Portable Exhaust Extractor features a tough housing and straightforward operation. It is a plug-and-play solution that requires no complex installation, operating on standard workshop power.

• Ideal for Various Service Centers: As a dedicated exhaust removal tool, it is perfectly suited for auto repair facilities, fleet service garages, motorcycle shops, and agricultural equipment workshops—anywhere engines are run indoors for service or diagnostics.

We are a specialized manufacturer focused on providing effective, no-fuss solutions for workshop safety. Our expertise lies in creating reliable, single-purpose tools like this Portable Exhaust Extractor that do their job exceptionally well. We ensure CE compliance and maintain stringent quality control throughout our manufacturing process. With a strong global supply network, we reliably serve professionals in key markets, including the UK, Australia, Canada, the USA, Malta, the Netherlands, Denmark, Norway, Germany, Switzerland, and over 60 countries worldwide. Choosing Fengshen means partnering with a supplier dedicated to delivering durable, performance-driven equipment that enhances your shop's air quality and safety compliance.

Q: What exactly does this Portable Exhaust Extractor do?

A: It is a mobile unit designed specifically to capture toxic exhaust fumes from a vehicle's tailpipe while the engine is running indoors (e.g., for repairs or diagnostics) and to safely expel those fumes outside the immediate work area, typically through a hose directed to an exterior point.

Q: Can it be used as a general workshop vacuum or for liquid spills?

A: No. This unit is a dedicated Portable Exhaust Extractor for gaseous and particulate exhaust fumes only. It is not designed for wet/dry vacuuming, liquid collection, or general dust cleanup from floors or surfaces.

Q: Is installation required?

A: No permanent installation is needed. It is a fully mobile, plug-and-play system. You simply position the Portable Exhaust Extractor, connect the capture hose to the vehicle's tailpipe, and plug the unit into a standard power outlet.

Q: How does it compare to simply opening a garage door?

A: While ventilation is important, a dedicated Portable Exhaust Extractor is far more effective. It provides source capture, actively pulling dangerous fumes like carbon monoxide away from the technician's breathing zone before they can disperse into the shop, offering a much higher level of safety.

Q: Is this unit suitable for a home garage enthusiast?

A: Absolutely. Its combination of effectiveness, simplicity, and mobility makes it an ideal and responsible investment for anyone who needs to run a vehicle engine inside a personal garage for maintenance, offering professional-grade fume protection.

• Automotive Repair Shops

• Auto Dealers

• Training Center

• Motorcycle & ATV/UTV Repair

• Truck Maintenance and Repair

• Bus Facilities

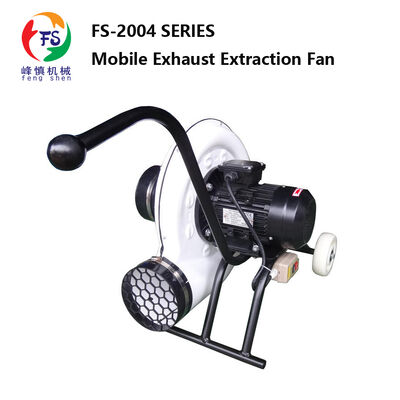

1. Exhaust Fan

2. Moveable Fan Bracket

3. Discharge Side Hose

4. Y-Piece Hose Adapter with Air Valve Switch (option)

5. Suction Side Hose (option)

6. Nozzle (option)

Fan housing are manufactured from Stamped sheet steel in 2 pieces and assembled using a high pressure seal. The housing is powder coated and includes a cast aluminum inlet with plastic hose/duct connection and outlet.

0.75KW & 1.1KW Fan incorporates a high efficiency, backward inclined, balanced, cast aluminium impeller.

1.5KW & 2.2KW Fan a steel squirrel cage backward inclined impeller (spark-proof construction).
