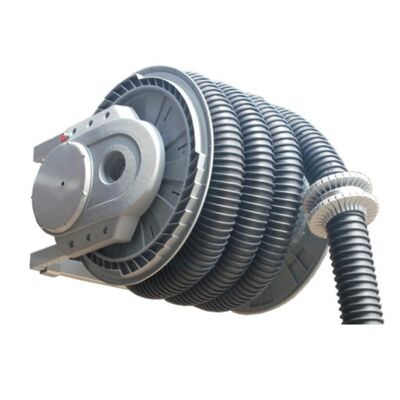

Retractable Exhaust Hose Reel System for Automotive Plant Maintenance Vehicle Fume Extractor

This Retractable Exhaust Hose Reel System is a professional-grade fume extraction solution engineered for automotive manufacturing plants, assembly facilities, and heavy-duty vehicle maintenance workshops. Designed as an essential vehicle auxiliary equipment system, this unit efficiently captures and removes hazardous exhaust gases, welding fumes, and airborne particulates directly at the source. Featuring a robust steel construction with automatic retraction mechanism and high-temperature resistant hose, this exhaust hose reel provides reliable, space-efficient exhaust management for facilities servicing passenger vehicles, trucks, and specialized equipment. As a complete workshop equipment solution, it ensures cleaner indoor air quality and compliance with occupational safety standards.

• Automatic Retractable Operation: This exhaust hose reel features a smooth, controlled automatic retraction system that neatly stores hoses without tangles or kinks. The mechanism ensures effortless deployment and retraction, reducing operator fatigue and extending hose lifespan through proper storage.

• High-Temperature Resistant Hose Construction: The flexible exhaust hose is manufactured from premium heat-resistant materials capable of withstanding continuous operating temperatures up to 200°C (with peaks to 220°C). This high-temperature design ensures long-term durability against hot exhaust gases from both gasoline and diesel engines commonly found in manufacturing environments.

• Heavy-Duty Steel Construction: The reel features robust steel construction with powder-coated finish for excellent corrosion resistance. This industrial-grade build ensures this exhaust hose reel withstands the rigors of daily use in demanding automotive plant environments.

• Versatile Mounting Options: This exhaust hose reel can be securely mounted on walls, ceilings, or floors depending on your facility layout. Ceiling mounting is particularly effective for keeping hoses elevated and out of the way, optimizing valuable floor space while providing excellent coverage for multiple service bays.

• Integrated Dust Collection Compatibility: The system can be configured with integrated dust collection components including pleated filter media that captures fine dust and exhaust particles effectively, ensuring comprehensive air quality management in manufacturing settings.

We are a trusted manufacturer and wholesale supplier of professional-grade workshop equipment with extensive experience in exhaust extraction technology for industrial applications. Our exhaust hose reel systems are meticulously engineered to meet the specific needs of automotive plants and vehicle repair workshops, ensuring efficient extraction of harmful pollutants and adherence to health and safety regulations.

As a factory-direct supplier with proven export expertise, we offer competitive pricing, strict quality control, and customization options to meet your specific requirements. We serve a global network of professionals with proven customer satisfaction and reliable logistics to key markets including the UK, Australia, Canada, the USA, Malta, the Netherlands, Denmark, Norway, Germany, Switzerland, and over 60 countries worldwide.

Our commitment to quality is reflected in every component, from the precision-engineered automatic drive mechanism to the high-temperature resistant hoses and durable steel construction. We understand the critical importance of effective fume control in professional settings and design our products for real-world durability and ease of use. Each exhaust hose reel is backed by comprehensive warranty coverage and technical support, ensuring long-term reliability and peace of mind for your investment.

Q: How does the automatic retraction mechanism work on this exhaust hose reel?
A: This exhaust hose reel utilizes a pre-calibrated spring mechanism. When you pull the hose out, the spring tension increases and a latch locks the hose at your desired length. After use, a gentle pull releases the latch, and the spring smoothly rewinds the hose back onto the reel for safe, automatic storage without manual effort.

Q: What are the benefits of the high-temperature resistant hose construction for manufacturing facilities?
A: The 200°C temperature rating ensures this exhaust hose reel can safely handle the extreme heat from both gasoline and diesel engine exhaust without degrading, cracking, or losing flexibility. This high-temperature design provides long-term durability and safe operation in demanding automotive plant environments where vehicles are frequently started and operated indoors.

Q: Can this system be integrated with existing central exhaust systems in manufacturing plants?
A: Yes, this exhaust hose reel is designed for seamless integration with fixed, centralized extraction systems. It can be connected to central exhaust fans and ductwork, allowing multiple reels to share a common extraction infrastructure throughout your facility.

Q: What maintenance does this exhaust hose reel require?
A: Maintenance is minimal but important for long-term reliability. For spring-operated reels, inspect the mechanism regularly for wear and lubricate moving parts according to manufacturer specifications. Periodically check the hose for cracks, heat damage, or deterioration that could compromise emission containment, and replace worn hoses promptly to maintain safe working conditions.

Q: Is this exhaust hose reel suitable for diesel vehicle applications in manufacturing environments?
A: Absolutely. This exhaust hose reel effectively handles diesel vehicle emissions, though larger diameter hoses (125mm-150mm) and more robust extraction systems are recommended for heavy-duty applications. The high-temperature hose construction ensures reliable performance with the higher exhaust volumes produced by diesel engines commonly found in commercial vehicle manufacturing and maintenance.

Fengshen Manual spring operated reels work best in applications where is within reaching distance of the operator. Simply pull down the hose to the desired length and attach the exhaust nozzle to the tailpipe. After successfully removing car exhaust from your space, the hose easily retracts back into the reel.

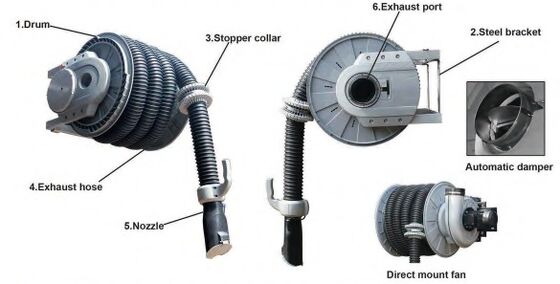

1. A drum (Dia-casting PPS plastic housing and zinc-plated steel cylinder) stores the hose securely in place overhead
2. The hose reel is mounted to a steel bracket.
3. Manual operation with multi-position lock ratchet and stopper collar
4. Heat & crush resistant rubber hose
5. Easy-quick nozzle can attach to the exhaust source.
6. The hose reel exhaust port can be equipped with a direct mount fan/blower .

The 09 series manual drum is composed of the parts shown in the picture. It has lower noise levels and is more convenient to use.
