| Brand Name: | Fengshen |
| Model Number: | FS-100-630 |
| MOQ: | 20 |
| Price: | 2900USD |
| Payment Terms: | T/T |
| Supply Ability: | 200 |

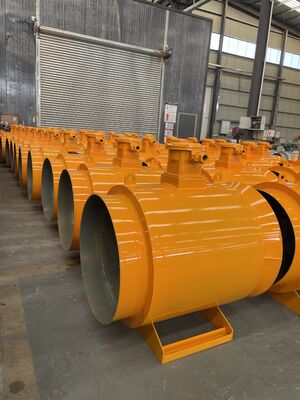

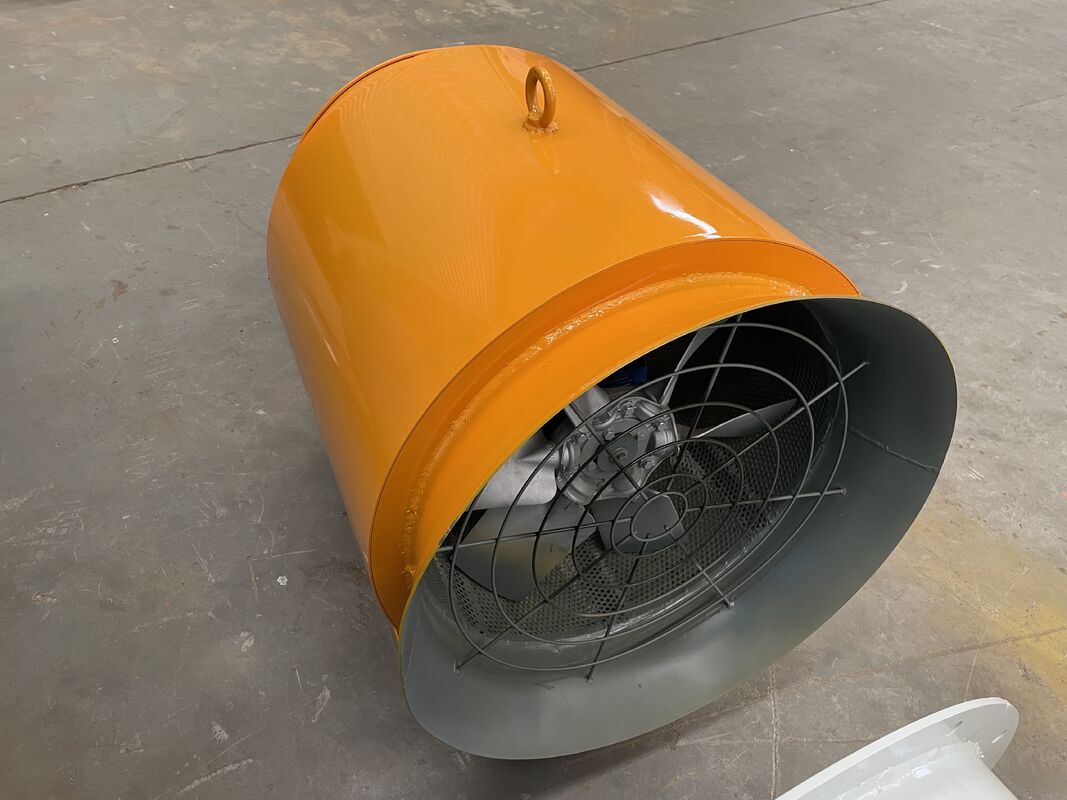

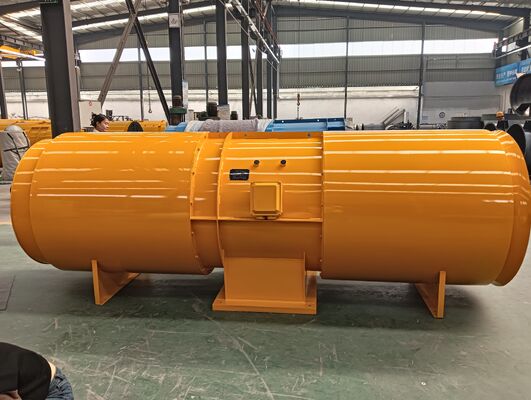

Our Self-Silent Axial Flow Exhaust Fan is a high-performance ventilation solution engineered for demanding infrastructure environments. This advanced axial flow fan delivers efficient air movement with significantly reduced noise levels, making it ideal for tunnels, railway systems, underground parking facilities, and industrial applications. Designed with customizable features including color, logo, and dimensional specifications, this axial flow fan adapts to your specific project requirements while maintaining superior aerodynamic performance. Built for continuous operation in challenging conditions, this axial flow fan combines robust construction with intelligent design to ensure reliable ventilation, smoke extraction capabilities, and long-term durability across global markets.
This axial flow fan incorporates advanced acoustic insulation and aerodynamically optimized blades to minimize operational noise. The sound-absorbing mineral wool lining within the casing significantly reduces decibel levels, making it suitable for noise-sensitive environments such as railway stations and public parking facilities.
We understand that every project has unique requirements. This axial flow fan supports complete customization including:
Engineered for critical safety applications, this axial flow fan can withstand extreme temperatures. Standard models operate continuously up to +55°C, with specialized versions available for smoke extraction mode at 300°C for 2 hours, ensuring reliable performance during emergency situations.
The casing is manufactured from polymer-coated steel with IP55 motor protection rating, providing excellent resistance against dust and water ingress. The dynamically balanced impeller, available in cast aluminum alloy or glass-fiber reinforced polyamide, ensures smooth operation and extended service life.
Whether installed in long highway tunnels, underground parking garages, or railway ventilation systems, this axial flow fan delivers consistent performance. It can be configured for unidirectional or reversible operation, with single-speed or double-speed options to match specific ventilation requirements.
We specialize in manufacturing industrial ventilation equipment that meets the highest international standards. Our Self-Silent Axial Flow Exhaust Fan represents years of engineering refinement, combining aerodynamic efficiency with practical customization options.
| Parameter | Specification |
|---|---|
| Product Type | Self-Silent Axial Flow Exhaust Fan |
| Impeller Material | Cast Aluminum Alloy / Glass-Fiber Reinforced Polyamide |
| Casing Material | Polymer-Coated Steel |
| Motor Protection | IP55 (Dust Protected & Water Jet Resistant) |
| Temperature Range | -40°C to +55°C (Standard) / 300°C for 2 hours (Smoke Extraction Mode) |
| Airflow Capacity | Up to 160,560 m³/h (44.6 m³/s) |
| Static Pressure | Up to 4,825 Pa |
| Speed Options | 2900 RPM, 1450 RPM, 960 RPM Available |
| Power Range | 0.75kW to 75kW |
| Voltage Options | 380V / 400V / 415V / Customizable |
| Control Options | VFD Compatible, Remote Control, MODBUS Monitoring |
| Customization | Color, Logo, Dimensions Available |
| Certifications | CE, ISO, RoHS Compliant |
| Target Markets | 60+ Countries including UK, US, CA, AU, DE, FR, CH, NL, DK, NO, MT, AF |
| Primary Applications | Tunnels, Railways, Underground Parking, Industrial Facilities |
| Warranty | 24-Month Comprehensive Warranty |
