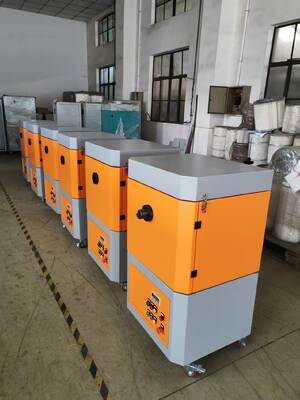

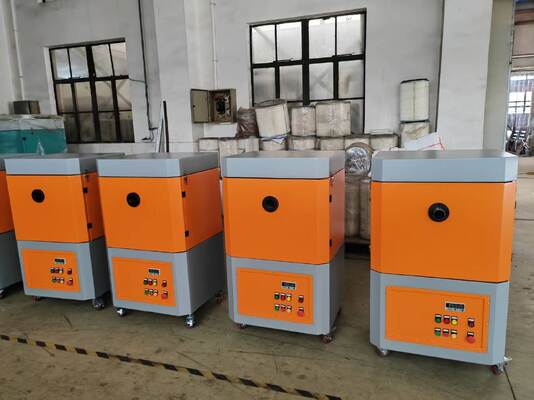

High Vacuum Welding Fume Extractor with Automatic Filter Cleaning Industrial Dust Purifier

Product Introduction

This High-Vacuum Welding Fume Extractor is a powerful, self-contained mobile filtration system engineered for demanding industrial environments where effective source capture of airborne contaminants is critical. Utilizing advanced high-vacuum technology, this welding fume extraction unit generates significant static pressure to pull hazardous welding smoke, fine dust, and toxic fumes through small-diameter hoses directly at the point of generation . Featuring an automatic pulse-jet filter cleaning system, it maintains peak performance with minimal operator intervention. This versatile purification system is ideally suited for welding, grinding, spraying, casting, chemical processing, woodworking, pharmaceutical manufacturing, ceramic production, and造纸 industries worldwide.

Features & Characteristics

• High-Vacuum Source Capture Technology: This welding fume extraction system operates at high static pressure (up to 45,000 Pa) to deliver powerful suction through narrow hoses and extraction tools, capturing contaminants directly at the source before they can disperse into the work environment .

• Automatic Pulse-Jet Filter Cleaning: Equipped with a reverse compressed air pulse system that automatically cleans the filter cartridges when differential pressure increases. This self-cleaning function maintains consistent airflow, extends filter service life, and minimizes maintenance downtime .

• High-Efficiency Multi-Stage Filtration: The system features large-area filter cartridges with separation efficiency exceeding 99.9% . Optional HEPA filters (H13 grade) can be added for applications requiring ultra-clean air, removing particles as small as 0.1-0.3 micrometers .

• Compact Mobile Design: With a small footprint and integrated heavy-duty casters (including locking brakes), this welding fume extraction unit can be easily positioned anywhere in your facility and moved between workstations as needed .

• User-Friendly Intelligent Controls: Features an intuitive LCD display with rotary knob for monitoring key parameters including filter status, airflow volume, and actual/target performance. Integrated silencers ensure quiet operation below 65-75 dB(A) .

• Versatile Multi-Industry Application: Suitable for manual welding stations, robotic welding cells, grinding benches, and industrial housekeeping. Compatible with fume extraction guns, suction arms, and central vacuum tools .

Why Choose Us?

We are a certified manufacturer with decades of expertise in industrial air filtration technology. Our high-vacuum welding fume extraction systems are engineered for durability, energy efficiency, and consistent performance in the most demanding environments worldwide. We hold CE and ISO9001 certifications, ensuring compliance with stringent international safety and quality standards .

As a factory-direct supplier with proven export expertise, we offer competitive pricing, strict quality control, and customization options to meet your specific requirements. We serve a global network of industrial clients with proven satisfaction and reliable logistics to key markets including the UK, Australia, Canada, the USA, Malta, the Netherlands, Denmark, Norway, Germany, Switzerland, and over 60 countries worldwide.

Our commitment to quality is reflected in every component—from the VFD-driven, energy-efficient motors to the advanced filter media and robust steel construction . We understand the critical importance of effective contaminant control in protecting worker health, ensuring regulatory compliance (OSHA, NFPA), and maintaining product quality. Each welding fume extraction unit is backed by comprehensive warranty coverage and responsive technical support, ensuring long-term reliability and peace of mind for your investment.

Specifications Table

Frequently Asked Questions (FAQ)

Q: How does high-vacuum welding fume extraction differ from low-vacuum or ambient systems?
A: High-vacuum (hi-vac) systems generate high static pressure to pull contaminants through small-diameter hoses directly at the source, such as through fume extraction guns . Low-vacuum or ambient systems move large air volumes at low pressure to capture fumes through large hoods or clean the entire room. Hi-vac is ideal for targeted source capture in welding, grinding, and robotic applications, preventing contaminants from spreading throughout the facility .

Q: How does the automatic filter cleaning system work?
A: The system monitors differential pressure across the filters. When the filters become loaded and pressure rises, a reverse compressed air pulse is automatically triggered, cleaning the cartridges and restoring airflow . This maintains consistent welding fume extraction performance and extends filter life without manual intervention.

Q: What industries benefit most from this high-vacuum extractor?
A: This versatile system serves a wide range of industries including: welding and metal fabrication, grinding and sanding operations, painting and coating facilities, foundries and casting, chemical and pharmaceutical manufacturing, woodworking and cabinetry, ceramic and glass production, and造纸 and packaging industries .

Q: Can this unit be connected to multiple workstations?
A: Yes. Depending on the model and power selected, this welding fume extraction system can support multiple workstations simultaneously—either through a Y-piece for two fume guns or via ducting to several extraction points . This provides flexible, centralized filtration for larger facilities.

Q: What maintenance does this system require?
A: Maintenance is minimal thanks to the automatic self-cleaning function. Primary tasks include: periodically emptying the dust collection drawer or drum, inspecting hoses and connections for wear, and replacing filter cartridges when they reach the end of their service life (typically every 1-2 years depending on usage). Many models feature tool-free filter access for quick replacement .

Q: Is the filtered air clean enough to recirculate indoors?
A: Yes. With filtration efficiency exceeding 99.9% and W3 certification, the purified air meets stringent occupational safety standards and can be safely recirculated directly into the workspace . For applications with especially high air purity requirements, optional HEPA after-filters provide additional protection, removing particles as fine as 0.1-0.3 micrometers .

Q: Can this extractor be used with robotic welding cells?
A: Absolutely. High-vacuum welding fume extraction is ideal for automated welding applications. The system can be integrated with robotic on-torch extraction, delivering consistent high-vacuum performance to capture fumes at the arc without interfering with robot movement .

Q: What safety certifications do your systems hold?
A: All our welding fume extraction systems are CE certified for European safety compliance and manufactured under ISO9001 quality management systems . Many models also meet W3/IFA requirements for air filtration efficiency and can be equipped with options such as spark arrestors, fire suppression, and explosion vents for hazardous environments .
