Portable Exhaust Extractor with 99.6% Filtration Efficiency and 1650 CFM for Vehicle Exhaust Purification

Brand Name:	FS
Model Number:	ES600
Payment Terms:	T/T
Supply Ability:	100 units per month,2000 units per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO9001

Hose Length:

4-8m

CFM:

1650

Filtration Efficiency:

99.6%

Filtration Area:

12m2(125sq.ft)

Power:

1.1KW(1.5Hp)

Frequency:

50Hz

Packaging Details:

Cardboard boxes, Wooden boxes

Supply Ability:

100 units per month,2000 units per year

Highlight:

99.6% Filtration Efficiency Portable Exhaust Extractor

1650 CFM Vehicle Exhaust Filter

Portable Exhaust Purification System

Product Description

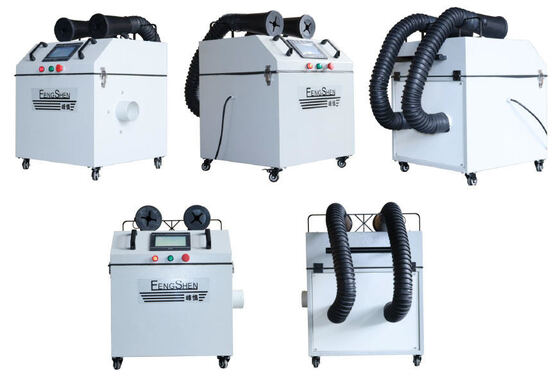

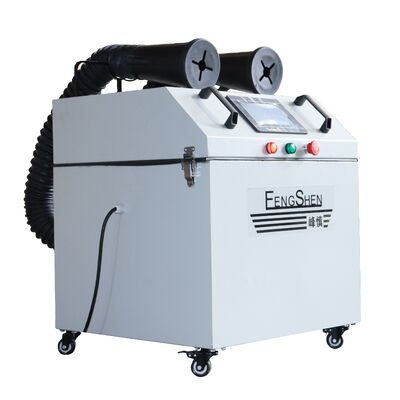

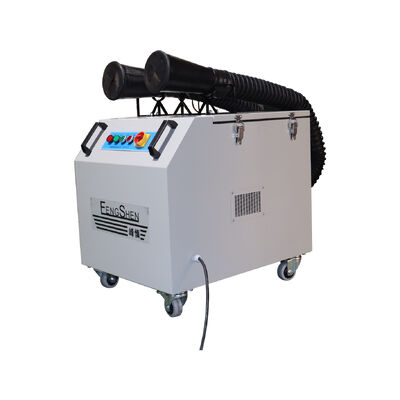

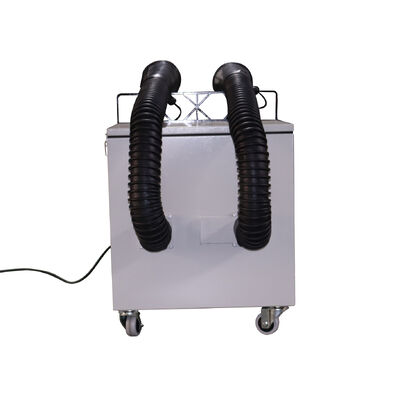

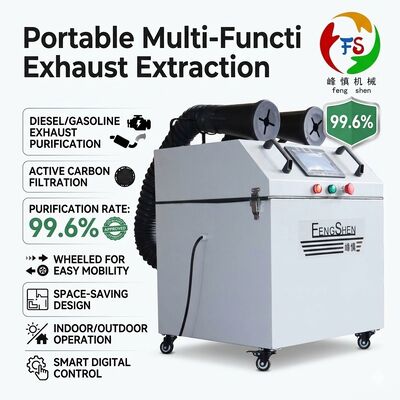

Portable Multi-functional Vehicle Exhaust Filter Purifier and Extractor System

Product Overview

Multifunctional portable intelligent exhaust fume extraction system equipped with particle catcher (DFC), activated carbon filter, and extractor. Effectively extracts exhaust emissions from diesel and gasoline engines for indoor maintenance, winter warm-up operations, and more.

This portable device can be moved throughout factories or workshops without requiring hoses to discharge gas outside, making it suitable for various site conditions.

How It Works

The fan in the cabinet pulls vehicle exhaust through the capture hose into the filtration system
Active carbon filter removes exhaust smell (standard)
Honeycomb ceramic particulate filter removes exhaust smoke (optional)
Honeycomb catalytic converter removes toxic exhaust gases (optional)
Filtered air returns to the surrounding room
Standard exhaust filtration and removal with optional CO testing and exhaust temperature detection

Technical Specifications

Order No.	ES600
Hose Length	4-8m
CFM (m³/h)	1650
Filtration Efficiency	99.6%
Filtration Area	12 m² (125 sq.ft)
Power	1.1 KW (1.5 Hp)
Frequency	50 Hz
Packaging Dimension	800 * 650 * 1000 mm
Ambient Temperature	-10 to +60 °C
Smoke Temperature (Dust)	220 °C
Noise Level	≤ 55 db(A)

Applications

This portable vehicle exhaust filter allows diesel and gasoline engines for indoor maintenance, winter warm-up operation, and various industrial applications.

Company Strengths

We are a Shanghai-based manufacturer with extensive experience in producing professional-grade workshop equipment. Our semi-automatic hydraulic electric exhaust hose reel systems are engineered for durability, reliability, and consistent performance in demanding environments.

As a factory-direct supplier, we offer competitive pricing, strict quality control, and full customization services to meet your specific requirements. We serve a global network of professionals with proven customer satisfaction and reliable logistics to key markets including the UK, Australia, Canada, the USA, Malta, the Netherlands, Denmark, Norway, Germany, Switzerland, and over 60 countries.

Choosing our exhaust hose reel means investing in a durable, efficient solution backed by professional support and a commitment to workshop safety.

Frequently Asked Questions

What is the main benefit of the dual-hose design on this Portable Exhaust Extractor?

The dual-hose design ensures 100% capture for vehicles with two tailpipes, which is a common feature on many performance and diesel vehicles. It makes this Portable Exhaust Extractor significantly more efficient and effective than using a single-hose unit with a makeshift "Y" adapter.

How does the filtration system work, and what does it remove?

The system draws exhaust through filters. A pre-filter catches larger soot and debris, while the main filter (e.g., activated carbon) adsorbs toxic gases like carbon monoxide and hydrocarbons. This process purifies the air before it is released, unlike standard extractors that merely move dirty air.

Is this unit suitable for a busy commercial garage with high daily use?

Absolutely. Its robust construction, powerful fan, and efficient dual-hose capture make it ideal for high-throughput environments. The filtration also protects the fan and extends service intervals, making this Portable Exhaust Extractor a durable, long-term investment.

What maintenance does the filtration system require?

Maintenance primarily involves replacing the filters. The pre-filter may be cleanable, while the main filter has a finite lifespan. The unit will typically have an indicator to signal when filter replacement is needed to maintain the performance of your Portable Exhaust Extractor.

Can it be used as the primary air quality solution for a small shop?

Yes, it is an excellent primary solution. Its mobility covers the entire shop, and its integrated filtration provides a level of air cleaning that far exceeds simple ventilation or basic exhaust fans, offering a complete and compact air quality management system.
