| Brand Name: | FengShen |
| Model Number: | FS-07S |
| MOQ: | 1 |
| Price: | $539-575 / piece |
| Payment Terms: | T/T |
| Supply Ability: | 100 units per month,2000 units per year |

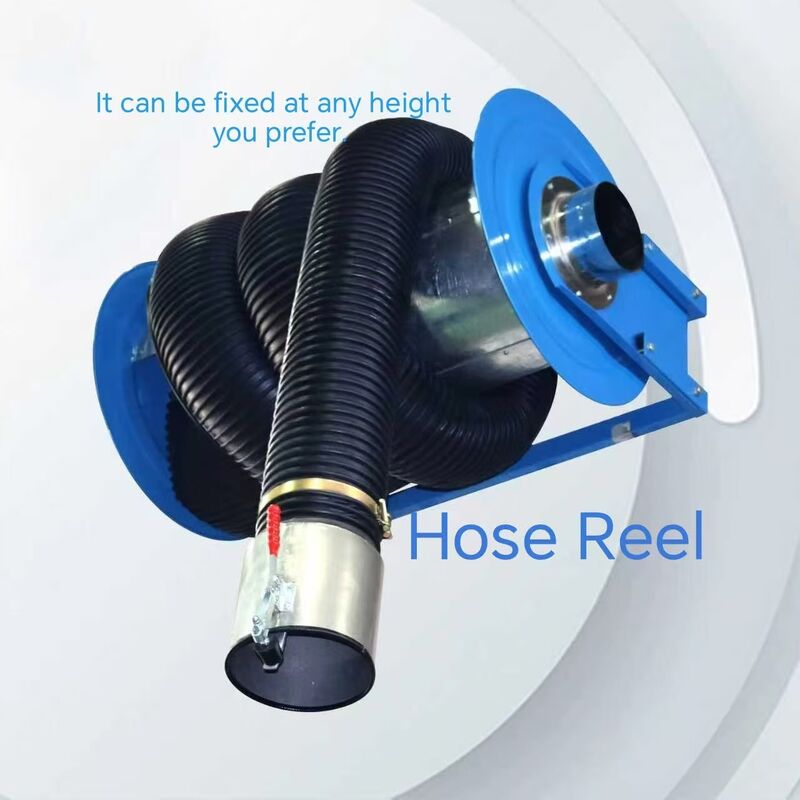

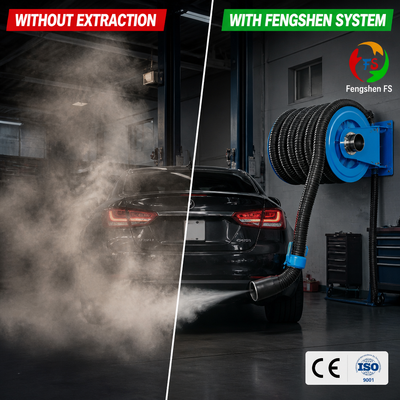

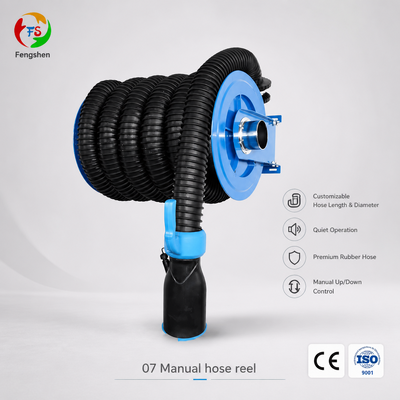

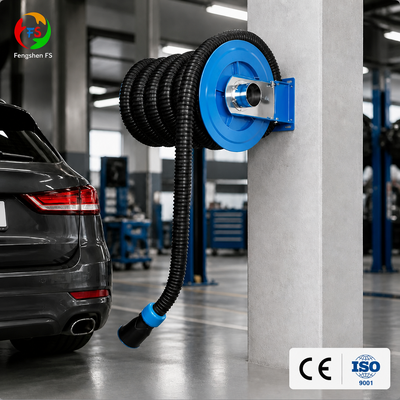

Fengshen Manual spring operated reels work best in applications where the hose reel is within reaching distance of the operator. Simply pull down the hose to the desired length and attach the exhaust nozzle to the tailpipe. After successfully removing car exhaust from your space, the hose easily retracts back into the reel.
2. φ152 rubber hose super for High-Emission Vehicle
3. Without fan (brower), this Hose Reel should be connected to a centralized exhaust fan.
| Diameter | 152mm |
| Length | 8meters |
| Temperature | -40to220Degree |
| Order No. | Drum Disc Dia(mm) | Drum Length(mm) | Hose Capacity |
|---|---|---|---|
| 2763030308 | 650 | 500 | φ76mm *8m |
| 2763030310 | 650 | 500 | φ76mm *10m |
| 2763030408 | 650 | 500 | φ102mm *8m |
| 2763030410 | 650 | 650 | φ102mm *10m |
| 2763030508 | 650 | 650 | φ127mm *8m |
| 2763030510 | 650 | 800 | φ127mm *10m |
| 2763030608 | 650 | 800 | φ152mm *8m |
| Order No. | Hose Material | Temp. Resistance(℃) | Hose Dia.(mm) |
|---|---|---|---|
| 275011-5 | PVC | 110 | 127 |
| 275021-3 | Neoprene | 200 | 76 |
| 275021-4 | Neoprene | 200 | 102 |
| 275021-5 | Neoprene | 200 | 127 |
| 275021-6 | Neoprene | 200 | 152 |
| 275031-3 | One-Layer Fabric | 300 | 76 |
| 275031-4 | One-Layer Fabric | 300 | 102 |
| 275031-5 | One-Layer Fabric | 300 | 127 |
| 275031-6 | One-Layer Fabric | 300 | 152 |
| 275061-4 | Two-Layer Fabric | 650 | 102 |
| 275061-5 | Two-Layer Fabric | 650 | 127 |
| 275061-6 | Two-Layer Fabric | 650 | 152 |
| Order No. | Power |
|---|---|
| 273175 | 0.75 KW |
| 273111 | 1.1 KW |
| 273215 | 1.5 KW |
| 273222 | 2.2 KW |
| 273230 | 3 KW |
| Order No. | Inlet | Material | Hose Dia |
|---|---|---|---|
| 274001-3 | φ120 mm | Neopren | 76 mm / 3" |
| 274001-4 | φ120 mm | Neopren | 102 mm / 4" |
| 274010-3 | φ120 mm | Neopren | 76 mm / 3" |
| 274010-4 | φ120 mm | Neopren | 102 mm / 4" |
| 274004-3 | 190 x 80 mm | Neopren | 76 mm / 3" |
| 274004-4 | 190 x 80 mm | Neopren | 102 mm / 4" |
| 274011-3 | 190 x 80 mm | Neopren | 76 mm / 3" |
| 274011-4 | 190 x 80 mm | Neopren | 102 mm / 4" |
| 274005-3 | 210 x 120 mm | Neopren | 76 mm / 3" |
| 274005-4 | 210 x 120 mm | Neopren | 102 mm / 4" |
| 274012-3 | 210 x 120 mm | Neopren | 76 mm / 3" |
| 274012-4 | 210 x 120 mm | Neopren | 102 mm / 4" |
| 274006-3 | 210 x 120 mm | Neopren | 76 mm / 3" |
| 274006-4 | 210 x 120 mm | Neopren | 102 mm / 4" |
| 274013-3 | 210 x 120 mm | Neopren | 76 mm / 3" |
| 274013-4 | 210 x 120 mm | Neopren | 102 mm / 4" |
| Order No. | Inlet | Material | Hose Dia |
|---|---|---|---|
| 274008-3 | 120 x 110 mm | Neopren | 76 mm / 3" |
| 274008-4 | 120 x 110 mm | Neopren | 102 mm / 4" |
| 274007-3 | 150 x 110 mm | Neopren | 76 mm / 3" |
| 274007-4 | 150 x 110 mm | Neopren | 102 mm / 4" |
| 274014-3 | 180 x 90 mm | Neopren | 76 mm / 3" |
| 274014-4 | 180 x 90 mm | Neopren | 102 mm / 4" |
| 274020-3 | 320 x 116 mm | Iron | 76 mm / 3" |
| 274020-4 | 320 x 116 mm | Iron | 102 mm / 4" |
| 274002-4 | φ180 mm | Neopren | 102 mm / 4" |
| 274002-5 | φ180 mm | Neopren | 127 mm / 5" |
| 274018-4 | φ180 mm | Neopren | 102 mm / 4" |
| 274018-5 | φ180 mm | Neopren | 127 mm / 5" |
| Order No. | Inlet | Material | Hose Dia |
|---|---|---|---|
| 274003-4 | φ150 mm | Neopren | 102 mm / 4" |
| 274003-5 | φ150 mm | Neopren | 127 mm / 5" |
| 274017-4 | 180 x 90 mm | Neopren | 76 mm / 3" |
| 274017-5 | 180 x 90 mm | Neopren | 102 mm / 4" |
| 274009-4 | φ180 mm | Neopren | 102 mm / 4" |
| 274009-5 | φ180 mm | Neopren | 127 mm / 5" |
| 274015-5 | φ245 mm | Stainless Steel | 127 mm / 5" |
| 274015-6 | φ245 mm | Stainless Steel | 152 mm / 6" |
| 274016-5 | 270 x 260 mm | Stainless Steel | 127 mm / 5" |
| 274016-6 | 270 x 260 mm | Stainless Steel | 152 mm / 6" |
| 274020-3 | φ140 mm | Iron | 76 mm / 3" |
| 274020-4 | φ140 mm | Iron | 102 mm / 4" |
